Voltage: 36V

Battery Capacity: 10Ah - 28.8Ah

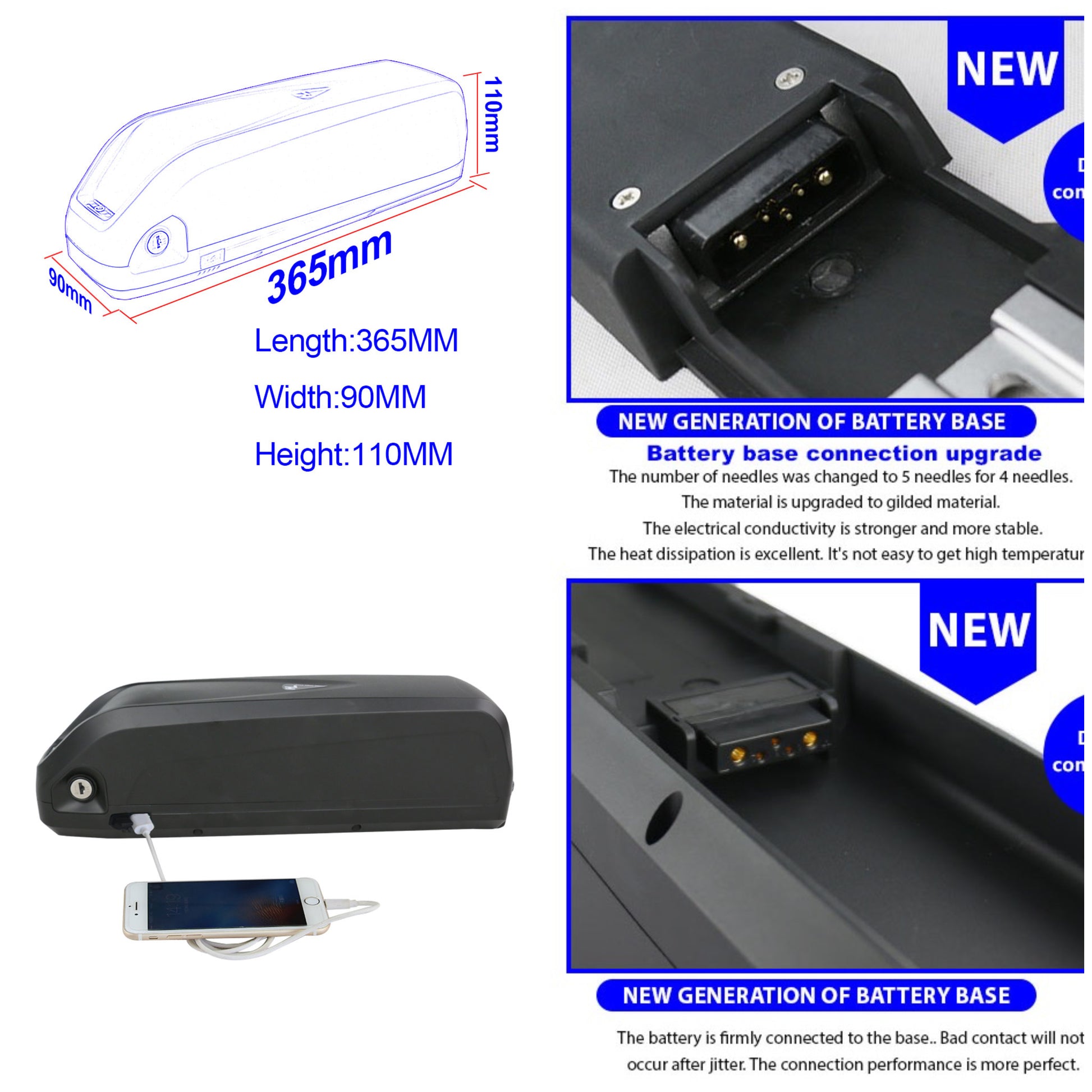

Battery Type: Lithium Ion (Li-Ion), Hailong Downtube

Charging Time: 5-10 hours

Feature
1, E-bike battery types: made of domestic 2500, 2600, 4800 cell and Panasonic battery cell. fits 36V250-750W motor.

2, The discharge interface is Anderson. Battery life: can charge and discharge over 1000 times;

3, Superior Quality & Safer Design. We have been in the battery industry for 10 year. bike battery pack’s quality is ensured by Insurance company. If there is any battery quality problem, our unique engineer will solve it. The battery has an LED display to show the usage power in time. The battery comes with a matching charger. When charging, please refer to the indicator light of the charger. When it turns into green, it indicates that the battery is fully charged.

4, Convenient design The battery comes with safety locks and switches. The battery can be firmly fixed to the bicycle and prevent the battery from being lost. There is a switch on the battery, When you are not using the battery, can turn off the battery, which save power consumption. (When charging, please turn on the battery switch). Integrated USB charging port which allow you to charge your phone while riding.

Specification
1, Nominal Capacity(AH): 13AH-28AH
2, Nominal voltage(V): 36V
3, Battery internal resistance（mΩ ）: 105
4, Cell Combination: 4X10/5x10/6x10
5, End-off voltage(V): 12
6, Charging cut-off voltage（V): 42
7, Rated charging current Amperage of BMS (A): 10
8, Maximum Instantaneous discharging current Amperage of BMS (A): 40 or 50
9, Maximum continuous discharging current Amperage of BMS(A）: 20 or 25
10, Battery Cell types: Lithium Li-on 2500mAh, Lithium Li-on 2600mAh, Panasonic 2900mAh, 4800mAh Li-on battery cell.
11, 5C discharge for Panasonic 2900mAh cell; 3C discharge for Li-on 2500MAH, 2600mAh, 4800mAh Cell.
12, Max charging Current Amperage of charging port(A): 5
13, E-bike battery life: can charge and discharge more than 2000 times for Panasonic 2900mAh Li-on cell; 1000 times for Li-on 2500MAH, 2600mAh, 4800mAh cell
14, Charging Type（CC-CV）: cc/cv
15, Cut-off charging voltage（V）: 54.6
16, Charge temperature range ssd: 0-50℃
17, Discharge temperature range: -20–50℃
