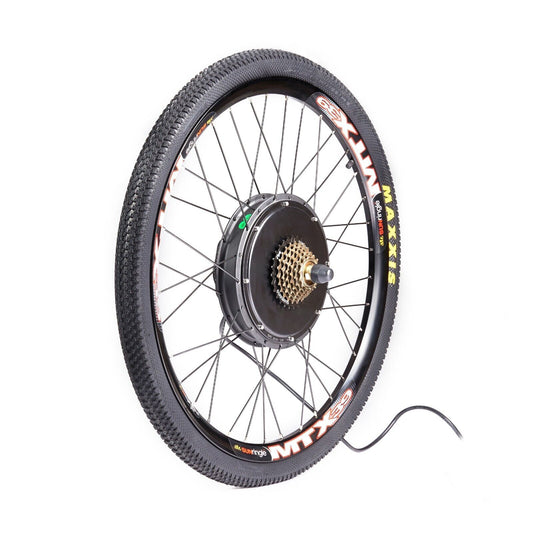

72V5000W Rear Wheel Electric Bike Hub Motor Conversion kit 80A Controller with TFT Display

Free Shipping to US, UK, EU, AU
$830.00 USD
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
1, Brushless 72V5000W DC motor with double hall sensor (150mm dropout or 170mm dropout);
2, Top Speed : About 80km/h (50mile/h); Big torque: Rated torque 50N./M, Max torque 100 N./m.
3, 80A sine-wave controller (24 MOZ Tube in it)
4, TFT display with 3.5" high contrast color screen.
5, MTX Wheel, 4.0" Fat Wheel and Motorcyle Wheel for option, Ideal ebike kit for Stealth Bomber ebike parts
Wheel Size
Hydraulic Disc Brake Option
Successfully message

Ask a question

Name should not be empty
Your email address is not valid.
Your phone number is not valid.
Message content should not be empty.
  • Guarantee Safe
    Checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa


Frequently Bought Together

About This Item

Voltage: 72V ;         Motor Power: 5000W  ;        Number of Speed:  7  ;        Max Speed: 80km/h(50mph) ;         Motor Type: BLDC Brushless Rear Hub Motor ;        Tire Type:  Motorcycle off-road tire, 2.5" tire and 4.0" Fat Tire
Brake Type: Hydraulic Disc Brake (optional) ;         Color: ;          Item Condition: New

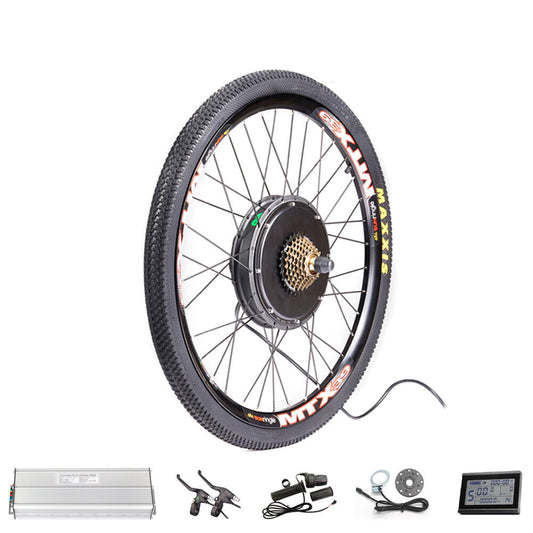

Components Included:  1 x 72V5000w DC motor with double hall sensor 1 x Motorcycle Wheel(rim width: 55mm) or MTX Wheel (rim width: 38.9mm) or 4.0 Fat Wheel (100mm rim width) 1 x 80Amp sine-wave controller ( 24 MOZ Tube in it) 1 x Wuxing Brand Twist or Thumb Throttle, 1 x Wuxing brand brake lever, 1 x 6 or 7 speed gear 1 x TFT display with 3.5" high contrast color screen 1 set of Zhongying HD-E500 Hydraulic Brake rear & front Plate Diameter 180mm (Optional)

Description

Reviews

Shipping Policy

Wheel Size & Bike Dropout Measure

Feature

1, Brushless 72V5000W DC motor with double hall sensor (150mm dropout or 170mm dropout); Top Speed : About 80km/h (50mile/h); Big torque: Rated torque 50N./M, Max torque 100 N./m.

2, 80A sine-wave controller (24 MOZ Tube in it)

3, TFT display with 3.5" high contrast color screen shows battery power level,  time, speed, mileage, gear, input power. Components error checking and report.



Specification


1, 72V5000W brushless gearless hub motor;
2, Magnet size: 50mm, dropout size:150mm for 26” MTX wheel and motorcycle wheel; 170mm for 26” x 4.0 Fat Wheel
3, Motorcycle rim: 55mm width, MTX Sun Ringle bicycle rim width: 38.9mm; Fat Wheel rim width: 100mm.
4, 80Amp sine-wave controller, Protect and prolong the life of the battery;
5, Brake lever, shut off the motor when you brake stainless steel disc brake;
6, Suggestion about the battery: 72V29AH-72V42AH battery



Shipping Policy

We normally ship it from China, US, UK or Germany warehouse by FEDEX, UPS, DPD, DHL, GLS, POST or other international express.

1, Ship it from US, UK and Germany warehouse

If we have stock in US, UK or Germany warehouse, we ship it from US warehouse to US buyers, from UK warehouse to UK buyers, from Germany warehouse to Europe Union buyers. The delivery normally takes about 1-5 business days. The shipping cost to these three countries (US, UK, Germany) is free. To the other Europe Union countries, you can check the shipping cost at checkout. No import tax from Germany to Europe Union countries.

 Shipping from US, UK and Germany Warehouse
 Destination

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

US, UK, Germany Free 1-5 None
EU, please check EU
countries list below

calculated

at checkout

3-5 None



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden



2, Ship it from China

When we don't have stock in the relevant market warehouse, we ship it from China. We need some days to prepare your order especially the stealth bomber ebike. And the delivery range is about from 10 to 45 business days now due to the Pandemic. Please check the shipping fee, handling time, delivery and import tax details in the following tables.

 Ship from China to US, UK, Australia, Germany, EU and some Asia countries, please check the EU and Asia countries lists below
 Package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-7.9kgs)

Free 7-10

Yes, if you

are asked

to pay

8kgs<package

<80kgs

Free 25-35 none

Stealth Bomber

Ebike

Free 30-45 none
Battery Free 15-20 none



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden

Some Asia countries list: Japan, Malaysia, Philippines, South Korea, Thailand, Vietnam



 Shipping from China to Canada
 package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-5.5kgs)

calculated

at checkout

7-10

Yes, if you are asked to pay

6kgs<package

<80kgs

calculated at checkout 25-35 none



Battery
calculated at checkout 35-45 none

 Stealth Bomber

Ebike

We cannot ship this bike to Canada, but the DIY parts package for stealth bomber ebike can be shipped to Canada, the shipping rate and delivery are same to 6kgs<package<80kgs



 Shipping from China to Switzerland, Norway and New Zealand (We cannot ship Stealth Bomber Ebike to this destination, but the DIY parts package for stealth bomber Ebike can be shipped to this three countries. The shipping rate and delivery are same to package which is over 30kgs
 Package

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

package
(1-30kgs)

calculated
at checkout
7-10 yes, if you are asked to pay
package>30kgs,
normally the DIY
parts package for stealth bomber Ebike
calculated
at checkout
10-15 yes, if you are asked to pay







How to measure a bike wheel size and the dropout of a bike

How to Measure a Bike Tire (How to Measure a Bicycle Tire)

In the bicycle field, the wheel size is the size of the bike wheel after you install the tire. So when you get the tire size, you get the bike wheel size.
If you have a bike tire on your wheel, you can generally find required measurement information on the tire wall (side of tire – see picture below).
Tire walls usually display the size as the picture below.
If you can’t find the sizing on the wall of your tire, here we show you the methods to get your bike wheel size.

The Standard Method (Easiest and Fastest Ways to Find Bike Tire Size)

The standard method is to measures the tire width and tire diameter in inches.

How to Measure Bike Wheel Size with the Standard Method

  1. Put your bicycle on its kickstand or against a wall so that it’s stable.
  2. Place the bottom of the tape at the lowest point of the tire (on the ground) and measure in a straight line to the centre of the bike wheel to find your wheel radius (as shown in the image above). Multiply your wheel's radius by two, then it is the wheel's diameter. it is the wheel size.
  3. Measure the tire's width by placing the type across the top of it like the picture below. the number you got is the tire width. Be sure to list the diameter first, followed by the tire width.
  4. Bike wheel diameters are rounded to the nearest half-inch, so if your measurements are just over or under, round up or down to the nearest size.

How To Measure a Bike Wheel (Rim) for Tire Size

If you do not have your bike’s tire to hand, you can determine the tire size by measuring your bike’s rim width in millimetres as well.
Based on the average tire and wheel combinations currently on the market, the following charts illustrate the coinciding tire size and rim length.
Many rims will display their size somewhere, but some rims may be missing this measurement.
If you cant find measurement on your wheel’s rim, follow the easy steps below that will help you determine the appropriate tire sizes your rim can handle.
  1. With no tire on your bike wheel, position the wheel vertically and hold it steady.
  2. Take a measuring tape and press it against the inside of the rim, where the tire bead would normally sit.
  3. Measure the internal distance from one side of the rim to the other (as shown in the image above).
  4. Take this width and apply it to the correct table below.

Road Bike Rim Width to Tire Size Chart

Mountain Bike Rim Width to Tire Size Chart
Measure of Wheel
20" -- outer tire: 495mm dia.; rim: 410mm dia.;
24" -- outer tire: 600mm dia.; rim: 517mm dia.
26" -- outer tire: 650mm dia.; rim: 573mm dia.;
700C -- outer tire: 690mm dia.; rim: 635mm dia.
28" -- outer tire: 710mm dia.; rim: 650mm dia.

How to measure the dropout of your bike

The dropout of your bike is important, it can decides if the electric bike kit can fit your bike or not. So before your purchase of an ebike kit, please measure the dropout of your bike first.

Bike dropout is literally called frame spacing, is the inside distance between the two fork ends (drop outs) where the wheel fits in. it is very easy to be measure just by removing the wheel and holding a ruler to measure the place where the wheel came out. please check the following picture.
